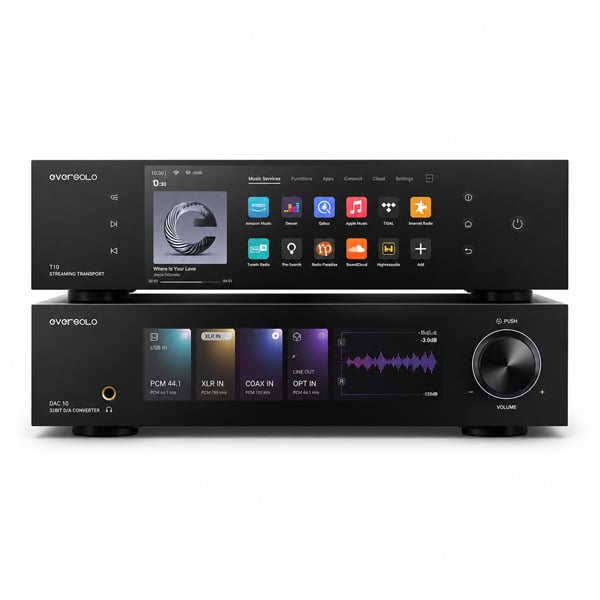

Eversolo T10 Reference Streaming Transport and DAC-Z10 Reference DAC Bundle

Description

Eversolo T10 Reference Streaming Transport and DAC-Z10 Reference DAC Bundle

The Ultimate Reference Digital Source Chain

The Eversolo T10 Reference Streaming Transport and DAC-Z10 Reference DAC represent the pinnacle of Eversolo’s engineering philosophy, designed as natural companions in a reference-grade digital source chain of extraordinary capability and precision. Where the T10 focuses with uncompromising dedication on delivering the purest, most stable digital signal foundation, the DAC-Z10 receives that signal and resolves it with the full transparency, dynamic range, and tonal realism of its dual mono AK4191 and AK4499 architecture. The shared engineering language between these two components, including common OCXO clocking technology, external master clock compatibility, multi-stage electrical isolation, and a commitment to signal purity at every stage, makes this pairing uniquely coherent and capable of revealing music in its most authentic and emotionally complete form.

Eversolo T10: Reference Streaming Transport

The Eversolo T10 is a reference-grade streaming transport built around a singular purpose: delivering every bit of the digital audio signal to the connected DAC intact, free of jitter, noise, and interference. Housed in a chassis CNC-machined from a solid block of aerospace-grade aluminium, the T10 combines a custom O-type linear power supply with closed-loop magnetic design, a high-precision OCXO clock with low-noise PLL, and multi-stage electrical isolation across every critical digital pathway, ensuring the cleanest and most stable digital transmission possible at every stage of the signal chain.

Digital outputs are comprehensive and fully isolated, including USB audio supporting DSD512 native and PCM 768kHz at 32-bit, IIS output with eight configurable modes at the same resolution, AES/EBU balanced output, and coaxial and optical outputs supporting PCM 192kHz at 24-bit and DoP64. Networking is equally accomplished, with a 2.5G Ethernet port, SFP optical network interface for galvanic network isolation, and dual-band Wi-Fi 6 providing flexibility and signal purity across any system configuration. External 10MHz and 25MHz master clock inputs with selectable 50-ohm and 75-ohm impedance allow timing synchronisation with the DAC-Z10’s own master clock input for an even higher level of system-wide timing coherence.

An octa-core ARM processor with 8GB DDR5 memory and 64GB eMMC storage handles high-resolution streaming and large music library management with complete composure. Dual SSD slots support up to 8TB of local storage per slot, CD playback and ripping with intelligent error correction is supported via an external drive, and the EOS audio engine bypasses unnecessary SRC processing to preserve original sample rates and maximum musical detail. The evotune Pro room correction system, up to 40 bands of DSP adjustment, 16x upsampling, and the EVC volume control engine complete a transport of exceptional depth and versatility, controlled via an 8.6-inch LCD touchscreen, the Eversolo Control app, or the included dual-mode Bluetooth and infrared remote.

Eversolo DAC-Z10: Reference Digital to Analogue Conversion

The Eversolo DAC-Z10 is a reference-grade digital-to-analogue converter and fully balanced preamplifier built on Eversolo’s Fully Isolated Architecture (FIA), which completely separates the digital and analogue domains to eliminate all cross-domain interference. Three independent ultra-low-noise linear power supplies independently power the left channel, right channel, and system circuitry, achieving noise levels as low as 42 microvolts and ensuring each stage operates in a pristine electrical environment of the highest standard.

Dual independent DAC modules for left and right channels each employ an AK4191 and AK4499 combination with AKM’s Velvet Sound technology, delivering exceptional dynamic range, ultra-low distortion, and refined tonal realism in a fully balanced topology. A precision R2R resistor ladder provides analogue volume control that preserves the original signal at every listening level without the resolution loss of digital attenuation, while the fully balanced analogue preamplifier supports both XLR and RCA inputs with up to plus 10dB of gain. The Eversolo Precision Core clock system combines an OCXO temperature-controlled crystal oscillator with PLL technology and FPGA-based clock reconstruction, and an onboard FPGA reshapes IIS data and refines clock signals before conversion to ensure maximum transparency and musical realism at the DAC stage. A dedicated headphone amplifier with adaptive gain for 16 to 300-ohm headphones, Bluetooth via Qualcomm QCC5125, HDMI ARC and eARC connectivity, and an 8.8-inch IPS touchscreen with selectable VU meters and dynamic spectrum displays complete a component of exceptional versatility and visual refinement.

Designed to Work Together

The T10 and DAC-Z10 share a deeply coherent design philosophy: both employ OCXO clocking with PLL optimisation, both support external 10MHz and 25MHz master clock synchronisation with selectable impedance, and both are built around multi-stage electrical isolation as the foundation of their engineering approach. Connected via the T10’s isolated USB audio or IIS output to the DAC-Z10’s fully isolated inputs, and optionally synchronised via a shared external master clock, this pairing achieves a level of system-wide timing coherence, signal purity, and musical transparency that is simply beyond the reach of less deliberately matched components. For listeners who demand uncompromising transparency and absolute musical fidelity from their digital source, this is the definitive Eversolo reference combination.

KEY FEATURES:

• Reference digital source chain combining the Eversolo T10 Reference Streaming Transport with the Eversolo DAC-Z10 Reference DAC and Preamplifier
• Both components feature OCXO clocking with low-noise PLL and external 10MHz/25MHz master clock support for unified system-wide timing coherence
• Eversolo T10: CNC-machined aerospace-grade aluminium chassis with custom O-type linear power supply
• T10 isolated digital outputs: USB audio (DSD512/PCM 768kHz 32-bit), IIS with 8 configurable modes, AES/EBU, coaxial, and optical
• T10 networking: 2.5G Ethernet, SFP optical network interface for galvanic isolation, and dual-band Wi-Fi 6
• T10 processing: octa-core ARM processor, 8GB DDR5, 64GB eMMC, dual SSD slots up to 8TB per slot
• T10 streaming: TIDAL, Qobuz, Amazon Music, Apple Music, Deezer, and more, with Spotify Connect Lossless, TIDAL Connect, Qobuz Connect, DLNA, JPLAY, and NAA
• T10 EOS audio engine with original sample-rate output, evotune Pro room correction, up to 40 DSP bands, and 16x upsampling
• T10 controlled via 8.6-inch LCD touchscreen, Eversolo Control app, or included dual-mode remote
• Eversolo DAC-Z10: Fully Isolated Architecture (FIA) with triple independent ultra-low-noise linear power supplies at 42 microvolts noise floor
• DAC-Z10 dual mono AK4191 and AK4499 DAC design with AKM Velvet Sound technology
• DAC-Z10 precision R2R resistor ladder analogue volume control for full-resolution signal integrity at every listening level
• DAC-Z10 FPGA signal optimisation reshaping IIS data and refining clock signals prior to DAC conversion
• DAC-Z10 fully isolated digital inputs: USB (DSD512/PCM 768kHz 32-bit), IIS (8 modes), dual coaxial, dual optical, AES/EBU, HDMI ARC/eARC
• DAC-Z10 dedicated headphone amplifier with adaptive gain for 16 to 300-ohm headphones
• DAC-Z10 Bluetooth via Qualcomm QCC5125 with SBC and AAC support
• DAC-Z10 8.8-inch IPS touchscreen with selectable VU meters and dynamic spectrum displays
• DAC-Z10 aviation-grade aluminium chassis with comprehensive electromagnetic shielding
• Both components support external 10MHz and 25MHz master clock input with selectable 50-ohm and 75-ohm impedance
