Description
NAD C 558 Belt Drive Turntable
Simple, Engaging Vinyl Playback
The NAD C 558 is a belt-drive turntable built to draw the full musical detail out of your records, with careful mechanical engineering and a clean, understated design. A precision belt-drive system, isolated motor and stable glass platter work together for smooth, consistent playback, and the pre-fitted Ortofon OM10 cartridge means it is ready to play from the first record. The sound is balanced, engaging and revealing, making it an easy turntable to live with across a whole collection.
Precision Belt-Drive Playback
The C 558 uses a belt-drive system to keep motor noise away from the stylus. With the motor isolated from the platter, music is reproduced with smoother motion and fewer distractions, so records sound calmer and more natural over longer listening sessions.
Accurate Speed for Natural Pitch and Timing
A carefully regulated power supply regenerates a clean AC signal for the precision motor, keeping the platter turning at an accurate, even speed. Melodies sound more lifelike, instruments keep their natural character, and timing stays true to the recording. Speed is selected manually between 33⅓ and 45 rpm.
Tonearm Control That Preserves Detail
The 9-inch tonearm holds the cartridge steady as it traces the groove, with adjustable tracking force and anti-skating. Set up correctly, the stylus retrieves more information from the record while reducing distortion and record wear. The supplied Ortofon OM10 moving magnet cartridge comes pre-fitted for clear detail and balanced tonality straight out of the box.
Solid Construction for Clearer Musical Expression
A solid MDF plinth, heavy glass platter with felt mat and a hardened steel bearing shaft give the C 558 a stable, low-resonance platform. With less vibration reaching the record, quieter passages are easier to hear and musical textures are more clearly defined. A low-resonance dust cover with an adjustable friction hinge protects the record and platter between sessions.
KEY FEATURES:
- Belt-drive turntable for smooth, consistent vinyl playback
- Precision AC motor with isolated power supply for stable speed accuracy
- Power supply regenerates clean AC for reduced noise and vibration
- Heavy glass platter with felt mat for improved rotational stability
- Solid MDF plinth to minimise unwanted resonance
- 9-inch tonearm with adjustable tracking force and anti-skating
- Pre-fitted Ortofon OM10 cartridge for easy setup
- Precision bearing with hardened steel shaft
- Manual 33⅓ and 45 rpm speed selection

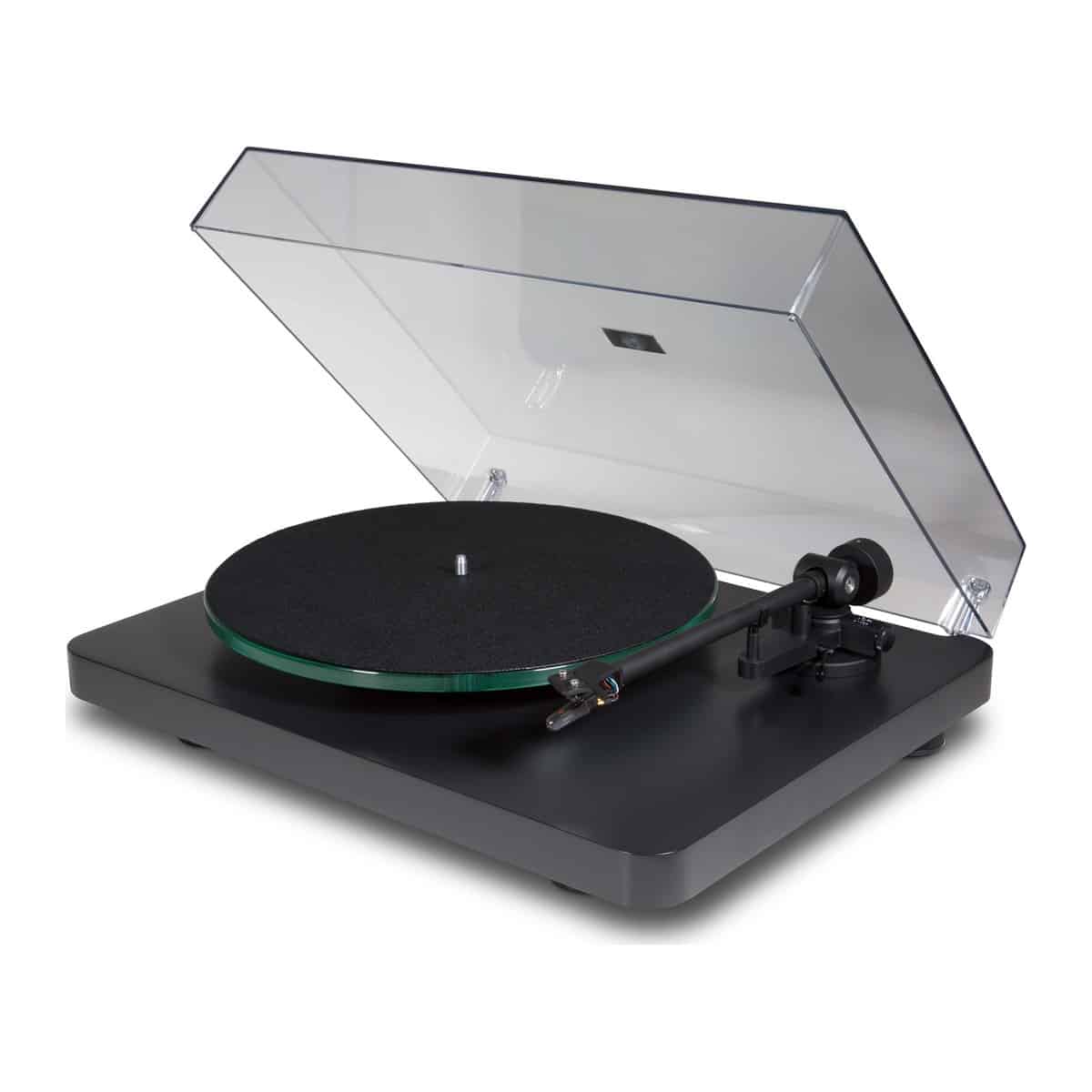

- Low-resonance dust cover with adjustable friction hinge
SPECIFICATIONS:
- Speed: 33/45 rpm, manual speed change
- Speed variance: 33 rpm < ±0.50%, 45 rpm < ±0.45%
- Wow and flutter: 33 rpm < ±0.15%, 45 rpm < ±0.15%
- Tonearm length: 230 mm
- Overhang: 18 mm
- Effective tonearm mass: 9.5 g
- Cartridge: Ortofon OM10, elliptical stylus, 4 mV output, 15 mN recommended tracking force
- Dimensions (W x H x D): 435 x 340 x 125 mm
- Weight: 5.5 kg (turntable), 1.74 kg (platter)
